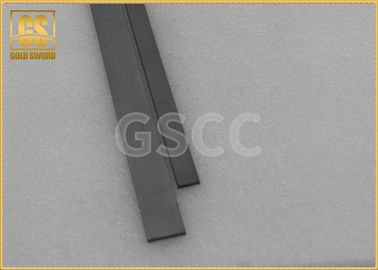

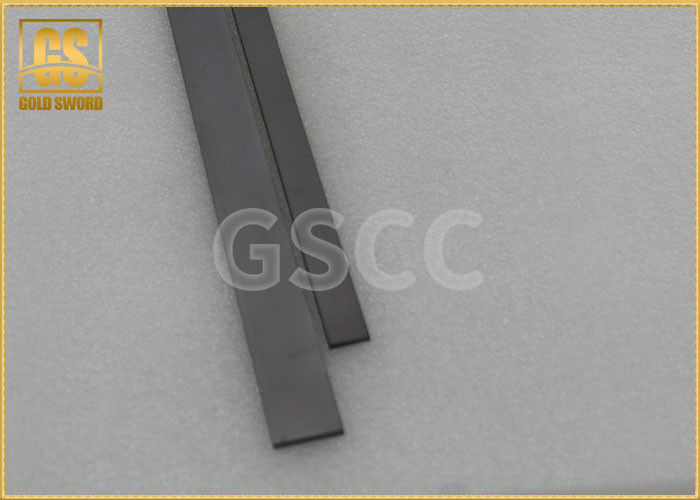

Woodcutting Tungsten Carbide Strips With HIP Sintering RX10 / RX20 / RX10T / AB10
Product Details:
| Place of Origin: | Zhuzhou，Hunan，China（mainland） |
| Brand Name: | Gold Sword |
| Model Number: | Tungsten Carbide Strips |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiate |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton packaging 15 kg per carton |
| Delivery Time: | 25 days |
| Payment Terms: | TT |
|
Detail Information |
|||
| Name: | Tungsten Carbide Strips | Material:: | Tungsten Carbide |
|---|---|---|---|
| GS Grade: | RX10 / RX20 / RX10T / AB10 | Application: | Woodcutting |
| Highlight: | square carbide blanks,cemented tungsten carbide |
||
Product Description
Woodcutting Tungsten Carbide Strips With HIP Sintering RX10 / RX20 / RX10T / AB10
Introduction of Tungsten Carbide Strips
1. Used for woodcutting
2. Size: can be customized
3. With high hardness
4. Easy brazing
5. With HIP sintering
6. Manufactory price
7. Fast delivery
Tungsten Carbide Strips Benefits
* Substantially longer service life than traditional steel tools
* Consistent working depth and tillage quality
* Permanently sharp cutting edges mean improved heeling and less traction power required
* Needs no depth adjustment due to wear
* Saves time and money thanks to fewer blade changes
* Much longer periods of use during good weather
* Optimum utilization of machine power
* Lower tool costs per acre
* Money saved through reduced stocks
| GSGrade | ISO Grade | Density (g/cm3) | Hardness (HRA) | T.R.S (MPα) | Grain Size | Performance & Application Recommended |
| RX10 | K20 | 14.6-15.0 | 90~90.5 | 2200~2400 | Medium | High hardness, suitable for roughing of iron, solid wood, dry wood or nonferrous metal, ceramic and other alloys. |
| RX20 | K30 | 14.6-15.0 | 90~90.5 | 2600~2800 | Fine | High toughness, easy to be brazed without heat preservation. Suitable for rosewood, solid wood, pinewood, and other wood with a lot stammer. |
| AB10 | K40 | 13.8-14.2 | 87.5~88 | 2800~3000 | Coarse |
High toughness, difficult to break tooth. Special used for finger jointing tool. |
Note: Our company can produce alloy grades that are more suitable for special processing fields according to customer needs.
| TPYE | SPECIFICATION | ||
| T(mm) | W(mm) | L(mm) | |
| STB424 | 3.2 | 19.1 | 152.4 |
| STB428 | 3.2 | 22.2 | 152.4 |
| STB432 | 3.2 | 25.4 | 152.4 |
| STB436 | 3.2 | 28.7 | 152.4 |
| STB440 | 3.2 | 31.8 | 152.4 |
| STB448 | 3.2 | 38.1 | 152.4 |
| STB46 | 3.2 | 4.8 | 152.4 |
| STB48A | 3.2 | 6.4 | 25.4 |
| STB48B | 3.2 | 6.4 | 31.8 |
| STB48C | 3.2 | 6.4 | 57.2 |
| STB48D | 3.2 | 6.4 | 76.2 |
| STB48E | 3.2 | 6.4 | 152.4 |
| STB510 | 4.0 | 7.9 | 152.4 |
| STB512 | 4.0 | 9.5 | 152.4 |
| STB516 | 4.0 | 12.7 | 152.4 |
| STB520 | 4.0 | 15.9 | 152.4 |
| STB524 | 4.0 | 19.1 | 152.4 |
| STB528 | 4.0 | 22.2 | 152.4 |
| STB532 | 4.0 | 25.4 | 152.4 |
| STB536 | 4.0 | 28.7 | 152.4 |
| STB540 | 4.0 | 31.8 | 152.4 |
| STB610 | 4.8 | 7.9 | 152.4 |
| STB610A | 4.8 | 7.9 | 76.2 |
| STB612 | 4.8 | 9.5 | 152.4 |
| STB612A | 4.8 | 9.5 | 76.2 |
| STB616 | 4.8 | 12.7 | 152.4 |
| STB616A | 4.8 | 12.7 | 76.2 |
| STB620 | 4.8 | 15.9 | 152.4 |
| STB620A | 4.8 | 15.9 | 76.2 |
| STB624 | 4.8 | 19.1 | 152.4 |
| STB628 | 4.8 | 22.2 | 152.4 |
| STB632 | 4.8 | 25.4 | 152.4 |
| STB636 | 4.8 | 28.7 | 152.4 |
| STB640 | 4.8 | 31.8 | 152.4 |
| STB648 | 4.8 | 38.1 | 152.4 |
| STB68 | 4.8 | 6.4 | 152.4 |
| STB68A | 4.8 | 6.4 | 76.2 |
| STB812 | 6.4 | 9.5 | 152.4 |
| STB812A | 6.4 | 9.5 | 76.2 |
| STB816 | 6.4 | 12.7 | 152.4 |
| STB816A | 6.4 | 12.7 | 76.2 |
| STB820 | 6.4 | 15.9 | 152.4 |
| STB820A | 6.4 | 15.9 | 76.2 |
| STB824 | 6.4 | 19.1 | 152.4 |
| STB824A | 6.4 | 19.1 | 76.2 |
| STB828 | 6.4 | 22.2 | 152.4 |
| STB832 | 6.4 | 25.4 | 152.4 |
| STB836 | 6.4 | 28.7 | 152.4 |
| STB840 | 6.4 | 31.8 | 152.4 |
| STB848 | 6.4 | 38.1 | 152.4 |
Advantages
1. Strict tolerance ranges makes high precision
2. Easy to change and reinstall
3. Durable and longer life
4. Environment friendly
5. 20 years' factory experience in this feild
6. OEM and Customized service
